100% Original Wholesale Brand new GIGA H110M-S2PH H110M-DS2 desktop motherboard
Here’s a detailed comparison table for the Gigabyte H110M-S2PH and H110M-DS2 motherboards:
| Feature | Gigabyte H110M-S2PH | Gigabyte H110M-DS2 |
|---|---|---|
| Chipset | Intel H110 | Intel H110 |
| Socket | LGA 1151 (6th/7th Gen Intel) | LGA 1151 (6th/7th Gen Intel) |
| Form Factor | Micro-ATX (24.4cm x 18.5cm) | Micro-ATX (22.6cm x 17.4cm) |
| Memory Support | 2x DDR4 DIMM (Max 32GB, 2133MHz) | 2x DDR4 DIMM (Max 32GB, 2133MHz) |
| Expansion Slots | 1x PCIe 3.0 x16 | 1x PCIe 3.0 x16 |
| 2x PCIe 2.0 x1 | 1x PCIe 2.0 x1 | |
| Storage | 4x SATA 6Gb/s | 4x SATA 6Gb/s |
| M.2 Slot | No | No |
| USB Ports | 2x USB 3.0 (rear) + 4x USB 2.0 | 2x USB 3.0 (rear) + 4x USB 2.0 |
| Video Outputs | DVI-D, HDMI | D-Sub (VGA), HDMI |
| LAN | Realtek GbE | Realtek GbE |
| Audio | Realtek ALC887 (7.1-channel) | Realtek ALC887 (7.1-channel) |
| PS/2 Ports | 1 (keyboard/mouse combo) | 2 (separate mouse/keyboard) |
| Serial/Parallel | No | Yes (optional via headers) |
| BIOS Features | DualBIOS (backup BIOS) | Single BIOS |

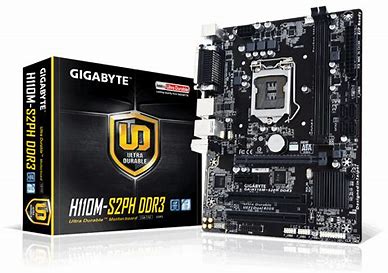

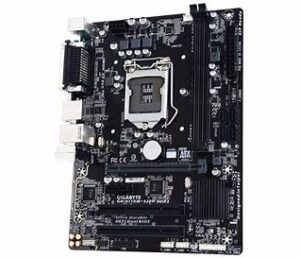

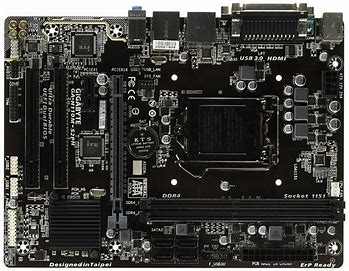

1. Gigabyte H110M-S2PH
The Gigabyte H110M-S2PH is an entry-level micro-ATX motherboard based on Intel’s H110 chipset, designed for 6th and 7th Gen Intel Core processors (LGA 1151). It supports dual-channel DDR4 memory (up to 32GB at 2133MHz) and includes a PCIe 3.0 x16 slot for dedicated graphics cards, along with two PCIe 2.0 x1 slots for expansion cards.
Storage & Connectivity:
-
4x SATA III (6Gbps) ports for HDDs/SSDs (no M.2 slot)
-
2x USB 3.0 (rear) + 4x USB 2.0 ports
-
DVI-D + HDMI video outputs (supports dual-monitor setups)
-
Realtek Gigabit LAN for wired networking
-
Realtek ALC887 audio (7.1-channel HD audio)
Special Features:
-
DualBIOS protection (backup BIOS for added reliability)
-
Single PS/2 combo port (for legacy keyboard/mouse)
Best For: Budget builds needing DVI output, extra PCIe slots, and BIOS backup protection.

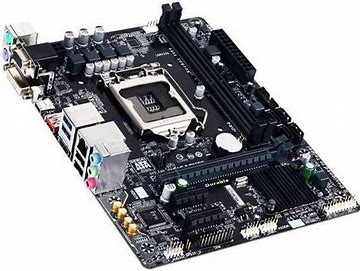

2. Gigabyte H110M-DS2
The Gigabyte H110M-DS2 is another H110-based micro-ATX motherboard, similar to the H110M-S2PH but with some key differences in connectivity. It also supports 6th and 7th Gen Intel CPUs (LGA 1151) and dual-channel DDR4 RAM (up to 32GB at 2133MHz).
Storage & Connectivity:
-
4x SATA III ports (no M.2 support)
-
2x USB 3.0 (rear) + 4x USB 2.0 ports
-
VGA (D-Sub) + HDMI video outputs (better for older monitors)
-
Realtek Gigabit LAN
-
Realtek ALC887 audio (7.1-channel HD audio)
Special Features:
-
Two separate PS/2 ports (for legacy keyboard & mouse)
-
Optional serial/parallel port headers (for industrial/legacy use)
-
Single BIOS (no backup)
Best For: Legacy systems needing VGA output, separate PS/2 ports, or industrial connectivity.
Comparison Summary
| Feature | H110M-S2PH | H110M-DS2 |
|---|---|---|
| Video Outputs | DVI-D + HDMI | VGA (D-Sub) + HDMI |
| PCIe Slots | 1x PCIe 3.0 x16 + 2x PCIe 2.0 x1 | 1x PCIe 3.0 x16 + 1x PCIe 2.0 x1 |
| PS/2 Ports | 1x combo (keyboard/mouse) | 2x separate (keyboard + mouse) |
| BIOS Protection | DualBIOS (backup) | Single BIOS |
| Legacy Support | No serial/parallel | Optional serial/parallel headers |
