100% Original Wholesale Brand new MSI X670E CARBON WIFI DDR5 X670E GAMING PLUS WIFI DDR5 dektop motherboard
Here’s a comparison table for the MSI X670E CARBON WIFI DDR5 and MSI X670E GAMING PLUS WIFI DDR5 motherboards:
| Feature | MSI X670E CARBON WIFI DDR5 | MSI X670E GAMING PLUS WIFI DDR5 |
|---|---|---|
| Chipset | AMD X670E | AMD X670E |
| Socket | AM5 (Ryzen 7000/8000 series) | AM5 (Ryzen 7000/8000 series) |
| Memory Support | DDR5 (Up to 6600+ MHz, OC) | DDR5 (Up to 6600+ MHz, OC) |
| PCIe Slots | 2x PCIe 5.0 x16 (x16/x4 or x8/x8) | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4) |
| M.2 Slots | 4x M.2 (PCIe 5.0 & 4.0) | 3x M.2 (PCIe 5.0 & 4.0) |
| SATA Ports | 6x SATA III | 6x SATA III |

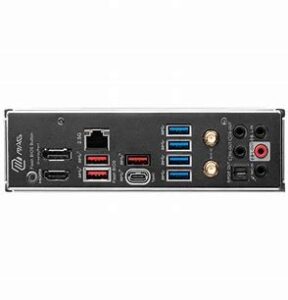

| USB Ports | – 1x USB 3.2 Gen2x2 (20Gbps, Type-C) – 9x USB 3.2 Gen2 (10Gbps) – 4x USB 2.0 |
– 1x USB 3.2 Gen2x2 (20Gbps, Type-C) – 6x USB 3.2 Gen2 (10Gbps) – 4x USB 2.0 |
| Networking | – Wi-Fi 6E – 2.5G LAN (Realtek) |
– Wi-Fi 6E – 2.5G LAN (Realtek) |
| Audio | Realtek ALC4082 (7.1ch, Hi-Fi) | Realtek ALC897 (7.1ch) |
| VRM & Power Design | 18+2+1 Phase (90A SPS) | 14+2+1 Phase (80A SPS) |
| RGB Lighting | Mystic Light (ARGB headers) | Mystic Light (ARGB headers) |
| Form Factor | ATX | ATX |
| Price Tier | Premium (Higher-end) | Mid-Range |

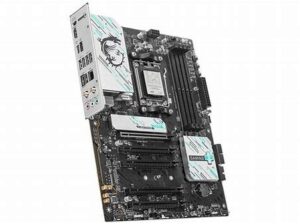

MSI X670E CARBON WIFI DDR5 – Premium Performance & Overclocking
The MSI X670E CARBON WIFI DDR5 is a high-end motherboard designed for enthusiasts and power users who demand top-tier performance. Built on AMD’s X670E chipset, it supports Ryzen 7000/8000 series processors with PCIe 5.0 connectivity for both graphics and storage.
-
Robust Power Delivery: An 18+2+1 phase VRM with 90A Smart Power Stages ensures stable power for extreme overclocking.
-
Next-Gen Storage & Expansion: Features four M.2 slots, including PCIe 5.0 support, and dual PCIe 5.0 x16 slots for multi-GPU or high-speed NVMe setups.
-
Premium Networking: Equipped with Wi-Fi 6E and a 2.5G LAN port for ultra-fast wired and wireless connectivity.
-
Enhanced Audio: Realtek ALC4082 high-end audio codec delivers superior sound quality for gaming and content creation.
-
RGB & Aesthetics: Includes Mystic Light ARGB headers for customizable lighting.
Ideal for high-end gaming rigs, workstations, and overclockers who need maximum performance and future-proofing.
MSI X670E GAMING PLUS WIFI DDR5 – Affordable X670E with Core Features
The MSI X670E GAMING PLUS WIFI DDR5 is a more budget-friendly X670E motherboard that retains key next-gen features while cutting some premium extras.
-
Solid Power Design: A 14+2+1 phase VRM with 80A SPS provides reliable power for Ryzen 7000/8000 CPUs, suitable for moderate overclocking.
-
PCIe 5.0 & M.2 Support: One PCIe 5.0 x16 slot and three M.2 slots (including PCIe 5.0) ensure fast storage and GPU performance.
-
Networking: Wi-Fi 6E and 2.5G LAN offer high-speed connectivity.
-
Basic Audio: Uses the Realtek ALC897 codec, which is decent but not as advanced as the Carbon’s ALC4082.
-
RGB Customization: Supports Mystic Light for ARGB lighting control.
Best for gamers and builders who want X670E features at a more accessible price, without needing extreme overclocking or extra PCIe 5.0 lanes.
Which One Should You Choose?
-
Go for the X670E Carbon if you need:
-
Maximum PCIe 5.0 bandwidth (dual x16 slots, extra M.2).
-
High-end VRM for overclocking.
-
Premium audio and more USB ports.
-
-
Choose the X670E Gaming Plus if you want:
-
A cost-effective X670E board.
-
Core PCIe 5.0 support (single GPU-focused).
-
Good Wi-Fi 6E & 2.5G networking.
-
