For NVIDIA GIGABYTE Gaming OC GeForce RTX 3060 12GB GDDR6 PCI Express 4.0 ATX Video Card GV-N3060GAMING OC-12GD 2.0 GV-N3060WF2OC-12GD GV-N3060GAMING OC-8GD (rev. 2.0)

Feature	GV-N3060GAMING OC-12GD 2.0	GV-N3060WF2OC-12GD	GV-N3060GAMING OC-8GD
GPU Chip	GA106-302-A1 (LHR)	GA106-302-A1 (LHR)	GA104-150-A1 (LHR)
Memory Capacity	12GB GDDR6	12GB GDDR6	8GB GDDR6
Memory Bus	192-bit	192-bit	128-bit
Boost Clock	1837 MHz	1807 MHz	1837 MHz
CUDA Cores	3584	3584	3584
Cooling System	WindForce 3X (Triple Fan)	WindForce 2X (Dual Fan)	WindForce 3X (Triple Fan)
RGB Lighting	RGB Fusion 2.0	None	RGB Fusion 2.0
Power Connector	1x 8-pin	1x 8-pin	1x 8-pin
TDP	170W	170W	170W
Recommended PSU	550W	550W	550W
Outputs	2x HDMI 2.1, 2x DP 1.4a	2x HDMI 2.1, 2x DP 1.4a	2x HDMI 2.1, 2x DP 1.4a
Card Dimensions	282×117×51 mm (2.5 slot)	242×112×40 mm (2.2 slot)	282×117×51 mm (2.5 slot)
Backplate	Metal backplate	No backplate	Metal backplate
Target Use	High-performance gaming	Budget-conscious builds	1080p gaming with smaller memory buffer

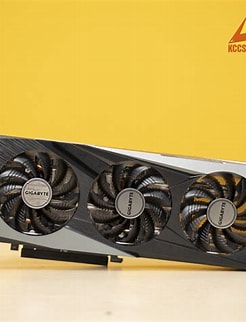

1. GV-N3060GAMING OC-12GD 2.0

Premium 12GB Model for High-Performance Gaming

The GV-N3060GAMING OC-12GD 2.0 is Gigabyte’s flagship RTX 3060 12GB model, featuring an upgraded triple-fan WindForce 3X cooling system for superior thermal performance.

• GPU & Memory: GA106-302-A1 (LHR) with 12GB GDDR6 (192-bit bus) for smooth 1440p gaming

• Boost Clock: 1837 MHz (factory overclocked for extra performance)

• Cooling: Three 80mm alternate-spinning fans + large heatsink with composite heat pipes

• Design: RGB Fusion 2.0 lighting + metal backplate for durability and style

• Power: 170W TDP, requires 1x 8-pin connector (550W PSU recommended)

• Outputs: 2x HDMI 2.1 + 2x DisplayPort 1.4a

• Size: 282 × 117 × 51 mm (2.5-slot, fits most mid-tower cases)

Best for: Gamers who want high 1440p performance with extra VRAM for future-proofing.

---

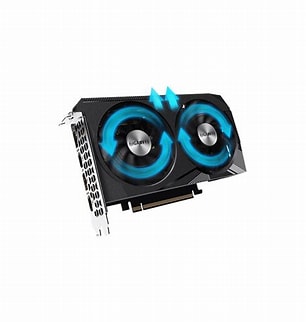

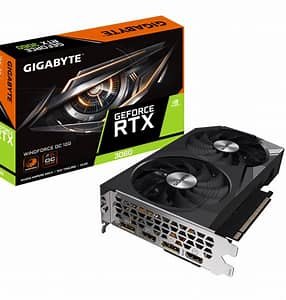

2. GV-N3060WF2OC-12GD

Compact & Efficient 12GB Model

The GV-N3060WF2OC-12GD is a dual-fan version of the RTX 3060 12GB, offering the same VRAM capacity in a more compact design.

• GPU & Memory: GA106-302-A1 (LHR) with 12GB GDDR6 (192-bit bus)

• Boost Clock: 1807 MHz (slightly lower than GAMING OC)

• Cooling: Dual 90mm WindForce 2X fans (alternate spinning for reduced noise)

• Design: No RGB or backplate (simple black shroud)

• Power: 170W TDP, 1x 8-pin connector (550W PSU recommended)

• Outputs: 2x HDMI 2.1 + 2x DisplayPort 1.4a

• Size: 242 × 112 × 40 mm (2.2-slot, great for small cases)

Best for: Budget builders who want 12GB VRAM in a smaller, no-frills package.

---

3. GV-N3060GAMING OC-8GD

8GB Model for 1080p Gaming with RGB

The GV-N3060GAMING OC-8GD is an 8GB variant of the RTX 3060, featuring the same GAMING OC triple-fan cooling but with a smaller memory buffer.

• GPU & Memory: GA104-150-A1 (LHR) with 8GB GDDR6 (128-bit bus)

• Boost Clock: 1837 MHz (same as 12GB GAMING OC)

• Cooling: WindForce 3X triple-fan system (same as 12GB model)

• Design: RGB Fusion 2.0 + metal backplate (same premium look)

• Power: 170W TDP, 1x 8-pin connector (550W PSU recommended)

• Outputs: 2x HDMI 2.1 + 2x DisplayPort 1.4a

• Size: 282 × 117 × 51 mm (same as 12GB GAMING OC)

Best for: 1080p gamers who want RGB aesthetics but don’t need 12GB VRAM.

---

Key Differences Summary

Which One Should You Buy?

✅ Choose GAMING OC-12GD for:

• 1440p gaming & future-proofing

• Best cooling & RGB aesthetics

✅ Choose WF2OC-12GD for:

• Smaller builds needing 12GB VRAM

• No RGB, pure performance focus

✅ Choose GAMING OC-8GD for:

• 1080p gaming with RGB

• Same cooling as 12GB model but less VRAM

All models support:
🔹 DLSS & Ray Tracing
🔹 PCIe 4.0
🔹 4-Year Warranty (with registration)
