New GIGABYTE X870E AORUS MASTER PRO ICE X870E A ELITE WIFI7 AM5 AMD 9000 CPU DDR5 USB4 Port PCIE 5.0 GPU WIFI 7 Gaming Motherboard X870 Mothoerbaords
Here’s a detailed comparison table for the Gigabyte X870E AORUS MASTER, X870E AORUS PRO ICE, and X870E AORUS ELITE WIFI7 motherboards:
| Feature | X870E AORUS MASTER | X870E AORUS PRO ICE | X870E AORUS ELITE WIFI7 |
|---|---|---|---|
| Socket | AM5 | AM5 | AM5 |
| Chipset | AMD X870E | AMD X870E | AMD X870E |
| CPU Support | AMD Ryzen 7000/8000 Series | AMD Ryzen 7000/8000 Series | AMD Ryzen 7000/8000 Series |
| Memory Support | 4x DDR5 (EXPO/XMP, 256GB Max) | 4x DDR5 (EXPO/XMP, 256GB Max) | 4x DDR5 (EXPO/XMP, 256GB Max) |
| PCIe Slots | 1x PCIe 5.0 x16 (x16) | 1x PCIe 5.0 x16 (x16) | 1x PCIe 5.0 x16 (x16) |
| 1x PCIe 5.0 x16 (x8) | 1x PCIe 5.0 x16 (x8) | 1x PCIe 4.0 x16 (x4) | |
| 1x PCIe 4.0 x16 (x4) | 1x PCIe 4.0 x16 (x4) | – | |
| M.2 Slots | 5x M.2 (3x PCIe 5.0, 2x PCIe 4.0) | 4x M.2 (2x PCIe 5.0, 2x PCIe 4.0) | 4x M.2 (1x PCIe 5.0, 3x PCIe 4.0) |
| Storage (SATA) | 6x SATA III | 6x SATA III | 4x SATA III |
| Networking | 10GbE LAN + Wi-Fi 7 | 2.5GbE LAN + Wi-Fi 7 | 2.5GbE LAN + Wi-Fi 7 |
| USB Ports | 1x USB4 (40Gbps) | 1x USB4 (40Gbps) | – |
| 7x USB 3.2 Gen2x2 (20Gbps) | 6x USB 3.2 Gen2x2 (20Gbps) | 4x USB 3.2 Gen2x2 (20Gbps) | |
| 4x USB 3.2 Gen2 (10Gbps) | 4x USB 3.2 Gen2 (10Gbps) | 4x USB 3.2 Gen2 (10Gbps) | |
| Audio | Realtek ALC1220-VB + ESS SABRE DAC | Realtek ALC1220-VB | Realtek ALC1220-VB |
| Power Delivery | 18+2+2 Phase VRM (105A) | 16+2+2 Phase VRM (90A) | 14+2+2 Phase VRM (70A) |
| Cooling | Active VRM Cooling + Fins-Array | Extended Heatsink Design | Basic Heatsink Design |
| RGB Lighting | RGB FUSION 2.0 (Multiple Zones) | RGB FUSION 2.0 (Dual Zones) | RGB FUSION 2.0 (Single Zone) |
| Form Factor | ATX | ATX | ATX |
| Price Range | 499−599 | 399−449 | 299−349 |

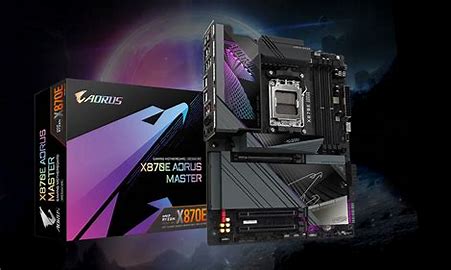

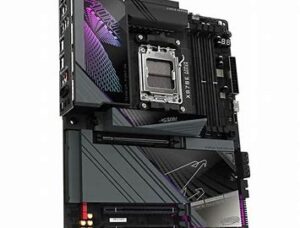

1. X870E AORUS MASTER – The Ultimate AM5 Powerhouse
The X870E AORUS MASTER is Gigabyte’s flagship AM5 motherboard, designed for enthusiasts, overclockers, and high-end workstation users. Built on the AMD X870E chipset, it supports Ryzen 7000/8000 series CPUs with extreme power delivery and PCIe 5.0 expansion.
Key Features:
✔ 18+2+2 Phase VRM (105A Power Stages) – Handles even the most power-hungry Ryzen 9 CPUs
✔ 5x M.2 Slots (3x PCIe 5.0 + 2x PCIe 4.0) – Ultra-fast storage for NVMe RAID setups
✔ 10GbE LAN + Wi-Fi 7 – Ideal for 8K streaming and low-latency gaming
✔ USB4 (40Gbps) + 7x USB 3.2 Gen2x2 (20Gbps) – Thunderbolt-like speeds for external storage
✔ Active VRM Cooling & Fins-Array Heatsinks – Optimized for sustained heavy workloads
✔ PCIe 5.0 x16/x8/x4 Slots – Multi-GPU or high-speed expansion card support
Best For: Extreme gaming rigs, 3D rendering, 8K video editing, and AI workloads.
2. X870E AORUS PRO ICE – High-End Performance with Premium Cooling
The X870E AORUS PRO ICE is a balanced high-end motherboard with a sleek white aesthetic and robust power delivery for Ryzen 7000/8000 chips.
Key Features:
✔ 16+2+2 Phase VRM (90A Power Stages) – Strong overclocking support for Ryzen 9
✔ 4x M.2 Slots (2x PCIe 5.0 + 2x PCIe 4.0) – Fast storage without compromise
✔ USB4 (40Gbps) + 6x USB 3.2 Gen2x2 (20Gbps) – High-speed peripherals & storage
✔ 2.5GbE LAN + Wi-Fi 7 – Great for competitive gaming & 4K streaming
✔ Extended Heatsink Design – Improved thermal performance for SSDs & VRMs
Best For: High-end gaming PCs, content creators, and users who want USB4 without the MASTER’s premium price.
3. X870E AORUS ELITE WIFI7 – Best Value X870E Board
The X870E AORUS ELITE WIFI7 is the most affordable X870E option, offering Wi-Fi 7 & PCIe 5.0 support at a competitive price.
Key Features:
✔ 14+2+2 Phase VRM (70A Power Stages) – Solid for Ryzen 7/9 at stock or mild OC
✔ 4x M.2 Slots (1x PCIe 5.0 + 3x PCIe 4.0) – Good storage flexibility
✔ 2.5GbE LAN + Wi-Fi 7 – Future-proof wireless & wired networking
✔ 4x USB 3.2 Gen2x2 (20Gbps) – Fast external storage support
✔ No USB4 – Lacks Thunderbolt alternative but keeps cost down
Best For: Budget-conscious gamers and productivity users who still want PCIe 5.0 & Wi-Fi 7.
Comparison Summary
| Feature | AORUS MASTER | AORUS PRO ICE | AORUS ELITE WIFI7 |
|---|---|---|---|
| VRM Phases | 18+2+2 (105A) | 16+2+2 (90A) | 14+2+2 (70A) |
| M.2 Slots | 5 (3x PCIe 5.0) | 4 (2x PCIe 5.0) | 4 (1x PCIe 5.0) |
| Networking | 10GbE + Wi-Fi 7 | 2.5GbE + Wi-Fi 7 | 2.5GbE + Wi-Fi 7 |
| USB4 Support | ✅ Yes | ✅ Yes | ❌ No |
| PCIe 5.0 x16 | x16/x8/x4 | x16/x8 | x16 |
| Best For | Extreme builds | High-end gaming | Budget AM5 systems |
Which One Should You Choose?
-
For No Compromises: X870E AORUS MASTER (Best VRM, 10GbE, USB4)
-
For High-End Value: X870E AORUS PRO ICE (USB4, strong VRM, Wi-Fi 7)
-
For Budget X870E: X870E AORUS ELITE WIFI7 (Wi-Fi 7, PCIe 5.0 at lower cost)
