100% Original Wholesale Brand new GIGABYTE B850 A ELITE WF7 ICE B850 A ELITE WF7 B850 GAMING X WIFI6E desktop motherboard
Here’s a detailed comparison table for the GIGABYTE B850 A ELITE WF7 ICE, B850 A ELITE WF7, and B850 GAMING X WIFI6E motherboards:
| Feature | B850 A ELITE WF7 ICE | B850 A ELITE WF7 | B850 GAMING X WIFI6E |
|---|---|---|---|
| Form Factor | ATX | ATX | ATX |
| Socket | AM5 (Ryzen 7000/8000/9000) | AM5 (Ryzen 7000/8000/9000) | AM5 (Ryzen 7000/8000/9000) |
| Chipset | AMD B850 | AMD B850 | AMD B850 |
| Memory Support | DDR5 (Up to 6400+ MHz) | DDR5 (Up to 6400+ MHz) | DDR5 (Up to 6400+ MHz) |
| PCIe Slots | 1× PCIe 5.0 x16 | 1× PCIe 5.0 x16 | 1× PCIe 5.0 x16 |
| M.2 Slots | 3× (PCIe 5.0/4.0) | 3× (PCIe 5.0/4.0) | 2× (PCIe 5.0/4.0) |
| SATA Ports | 4× SATA 6Gbps | 4× SATA 6Gbps | 4× SATA 6Gbps |
| Networking | Wi-Fi 7 + 2.5G LAN | Wi-Fi 7 + 2.5G LAN | Wi-Fi 6E + 2.5G LAN |
| USB Ports | USB4 (Type-C), USB 3.2 Gen2 | USB4 (Type-C), USB 3.2 Gen2 | USB 3.2 Gen2 (No USB4) |
| Audio | Realtek ALC1220 | Realtek ALC1220 | Realtek ALC897 |
| RGB Lighting | Yes (RGB Fusion) | Yes (RGB Fusion) | Yes (RGB Fusion) |
| Cooling | Extended Heatsinks | Extended Heatsinks | Basic Heatsinks |
| Power Delivery | 12+2+1 Phase VRM | 12+2+1 Phase VRM | 10+2+1 Phase VRM |
| Target Audience | High-end users, overclockers | High-end users, overclockers | Budget-conscious ga |
GIGABYTE’s B850 series brings next-gen AMD AM5 platform support to mainstream users, offering a balance of performance, connectivity, and value. The B850 A ELITE WF7 ICE, B850 A ELITE WF7, and B850 GAMING X WIFI6E cater to different user needs—from premium features to budget-conscious builds.

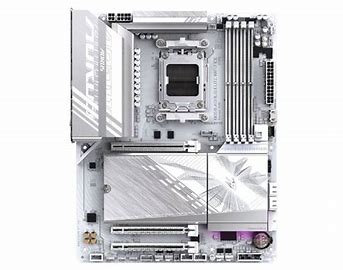

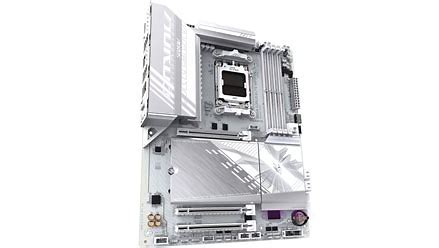

1. GIGABYTE B850 A ELITE WF7 ICE – Premium Performance with Enhanced Cooling
The B850 A ELITE WF7 ICE is the flagship model in this lineup, designed for users who demand high-end features with improved thermal performance.
Key Features:
✅ Wi-Fi 7 & 2.5G LAN – Future-proof wireless and wired networking.
✅ USB4 (Type-C) Support – 40Gbps speeds for fast data transfers.
✅ 12+2+1 Phase VRM – Robust power delivery for stable overclocking.
✅ 3x PCIe 5.0/4.0 M.2 Slots – Ultra-fast NVMe SSD support.
✅ Enhanced Cooling – Larger heatsinks for better thermal dissipation.
✅ ALC1220 Audio – High-quality audio for immersive sound.
Best For: Enthusiasts and power users who want top-tier networking, USB4, and superior cooling in an ATX form factor.
2. GIGABYTE B850 A ELITE WF7 – High-End Performance Without the ICE Cooling
The B850 A ELITE WF7 is nearly identical to the WF7 ICE but with a standard cooling solution (no extended heatsinks).
Key Features:
✅ Wi-Fi 7 & 2.5G LAN – Same cutting-edge networking as the ICE version.
✅ USB4 (Type-C) Support – 40Gbps bandwidth for high-speed devices.
✅ 12+2+1 Phase VRM – Strong power delivery for Ryzen 7000/8000/9000 CPUs.
✅ 3x PCIe 5.0/4.0 M.2 Slots – Plenty of fast storage options.
✅ ALC1220 Audio – Premium audio quality.
Best For: Users who want Wi-Fi 7 and USB4 but don’t need the extra cooling of the ICE variant.
3. GIGABYTE B850 GAMING X WIFI6E – Budget-Friendly with Solid Features
The B850 GAMING X WIFI6E is a more affordable option, sacrificing some premium features but still delivering great performance.
Key Features:
✅ Wi-Fi 6E & 2.5G LAN – Still fast, but not as future-proof as Wi-Fi 7.
❌ No USB4 – Relies on USB 3.2 Gen2 (20Gbps max).
✅ 10+2+1 Phase VRM – Decent power delivery for most users.
✅ 2x PCIe 5.0/4.0 M.2 Slots – One less than the ELITE models.
✅ ALC897 Audio – Basic but sufficient for most gamers.
Best For: Budget-conscious gamers who still want PCIe 5.0, Wi-Fi 6E, and DDR5 support without paying for premium extras.
Which One Should You Choose?
| Model | Best For | Key Advantage |
|---|---|---|
| B850 A ELITE WF7 ICE | High-end builds, overclockers, future-proofing | Wi-Fi 7, USB4, best cooling |
| B850 A ELITE WF7 | Premium features without extra cooling | Wi-Fi 7, USB4, strong VRM |
| B850 GAMING X WIFI6E | Budget gaming & mainstream builds | Affordable, Wi-Fi 6E, PCIe 5.0 |
Final Verdict:
-
Need the absolute best? → B850 A ELITE WF7 ICE
-
Want Wi-Fi 7 & USB4 but don’t need extra cooling? → B850 A ELITE WF7
-
On a budget but still want solid features? → B850 GAMING X WIFI6E
