Wholesale A SUS H110M-A H110M-K H110M-K Plus H110M-A WiFi II H110M-A Plus Half Height Half Length AMD Socket 1151 DDR4 Integrated Graphics Card Motherboard H81m H110m Mainboard

Feature	H110M-A	H110M-K	H110M-K Plus	H110M-A WiFi II	H110M-A Plus
Form Factor	Micro-ATX	Micro-ATX	Micro-ATX	Micro-ATX	Micro-ATX
Chipset	Intel H110	Intel H110	Intel H110	Intel H110	Intel H110
Memory Slots	2x DDR4	2x DDR4	2x DDR4	2x DDR4	2x DDR4
Max Memory	32GB (2133MHz)	32GB (2133MHz)	32GB (2133MHz)	32GB (2133MHz)	32GB (2133MHz)
PCIe Slots	1x PCIe 3.0 x16 2x PCIe 2.0 x1	1x PCIe 3.0 x16 1x PCIe 2.0 x1	Same as H110M-K	Same as H110M-A	Same as H110M-A
Storage	4x SATA 6Gbps	4x SATA 6Gbps	4x SATA 6Gbps	4x SATA 6Gbps	4x SATA 6Gbps
M.2 Slot	No	No	No	No	No
USB Ports	4x USB 3.0 6x USB 2.0	2x USB 3.0 6x USB 2.0	Same as H110M-K	Same as H110M-A	Same as H110M-A
Video Outputs	VGA, DVI-D	VGA, DVI-D	VGA, DVI-D	VGA, DVI-D	VGA, DVI-D, HDMI
LAN	Realtek 8111H	Realtek 8111H	Realtek 8111H	Realtek 8111H	Realtek 8111H
Audio	Realtek ALC887	Realtek ALC887	Realtek ALC887	Realtek ALC887	Realtek ALC887
WiFi	No	No	No	802.11ac WiFi	No
RGB Headers	No	No	No	No	No
Fan Headers	1x CPU 1x Chassis	1x CPU 1x Chassis	Same	Same	Same
Special Features	–	Basic version	Updated version	WiFi included	HDMI support
Target Audience	Mainstream	Budget builds	Budget refresh	Wireless needs	HDMI users
Release Price	$60-$70	$50-$60	$55-$65	$70-$80	$65-$75

1. ASUS H110M-A (Standard Model)

Target Audience: Mainstream users needing balanced features

Key Features:

• Expansion: 1x PCIe 3.0 x16 + 2x PCIe 2.0 x1 slots

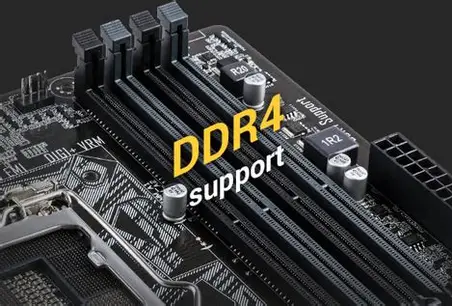

• Memory: Dual-channel DDR4 (2133MHz, max 32GB)

• Storage: 4x SATA 6Gbps ports

• Connectivity:

  • 4x USB 3.0 ports (2 rear, 2 via header)

  • 6x USB 2.0 ports

  • Realtek 8111H Gigabit LAN

• Video Outputs: VGA + DVI-D

• Audio: Realtek ALC887 7.1 channel HD audio

• Cooling: 1x CPU + 1x chassis fan headers

Best For: General-purpose builds needing basic expansion options

---

2. ASUS H110M-K (Budget Model)

Target Audience: Cost-sensitive builders

Key Differences from H110M-A:

• Reduced Expansion: Only 1x PCIe x1 slot

• Fewer USB 3.0 Ports: 2 total (1 rear + 1 header)

• Same Core Features: Same memory, storage, and LAN

• Simpler PCB Layout: Fewer components for cost reduction

Best For: Basic office PCs and simple home systems

---

3. ASUS H110M-K Plus (Budget Refresh)

Target Audience: Those wanting updated budget option

Key Improvements over H110M-K:

• Updated Components: Revised power delivery

• Better Compatibility: Improved Skylake/Kaby Lake support

• Same I/O: Identical ports and slots as H110M-K

Best For: Budget builds needing slightly better reliability

---

4. ASUS H110M-A WiFi II (Wireless Model)

Target Audience: Users needing built-in WiFi

Special Features:

• Wireless Connectivity: 802.11ac WiFi + Bluetooth 4.0

• External Antenna: 2x SMA antenna connectors

• Other Features: Matches standard H110M-A specs

• Premium Networking: Dual-band (2.4GHz/5GHz) support

Best For: Compact builds where wired networking isn’t practical

---

5. ASUS H110M-A Plus (HDMI Model)

Target Audience: Users needing modern display outputs

Key Enhancement:

• Additional Video Output: HDMI 1.4b support

• Better Display Flexibility: Supports 4K@24Hz via HDMI

• Other Features: Same as standard H110M-A

Best For: HTPCs and systems needing HDMI connectivity

---

Comparison Summary

Technical Notes:

• All models support Intel 6th/7th Gen Core processors

• Maximum memory capacity: 32GB DDR4 (2x16GB)

• No M.2 support in any variant

• Limited overclocking capabilities (H110 chipset restriction)

Purchase Recommendation:

• Best Value: H110M-A (balanced features)

• Tight Budget: H110M-K Plus

• Wireless Needs: H110M-A WiFi II

• Media Center: H110M-A Plus
